The machine features:
1, compact design, small footprint, computer touch screen Chinese operation menu, easy to use;
2, change process and material fast, high efficiency, high precision, fast speed, convenient maintenance;
3, the machine adopts the servo control: 6 sets of servo (servo servo /
);
4, pneumatic components: electromagnetic raft + (SMC) cylinder pressure detection,
7, the computer numerical control debugging: blade size, cutting length, length, strength and peeling and twisting flux dip depth and wetting depth, to achieve digital touch screen operation;
Product Name

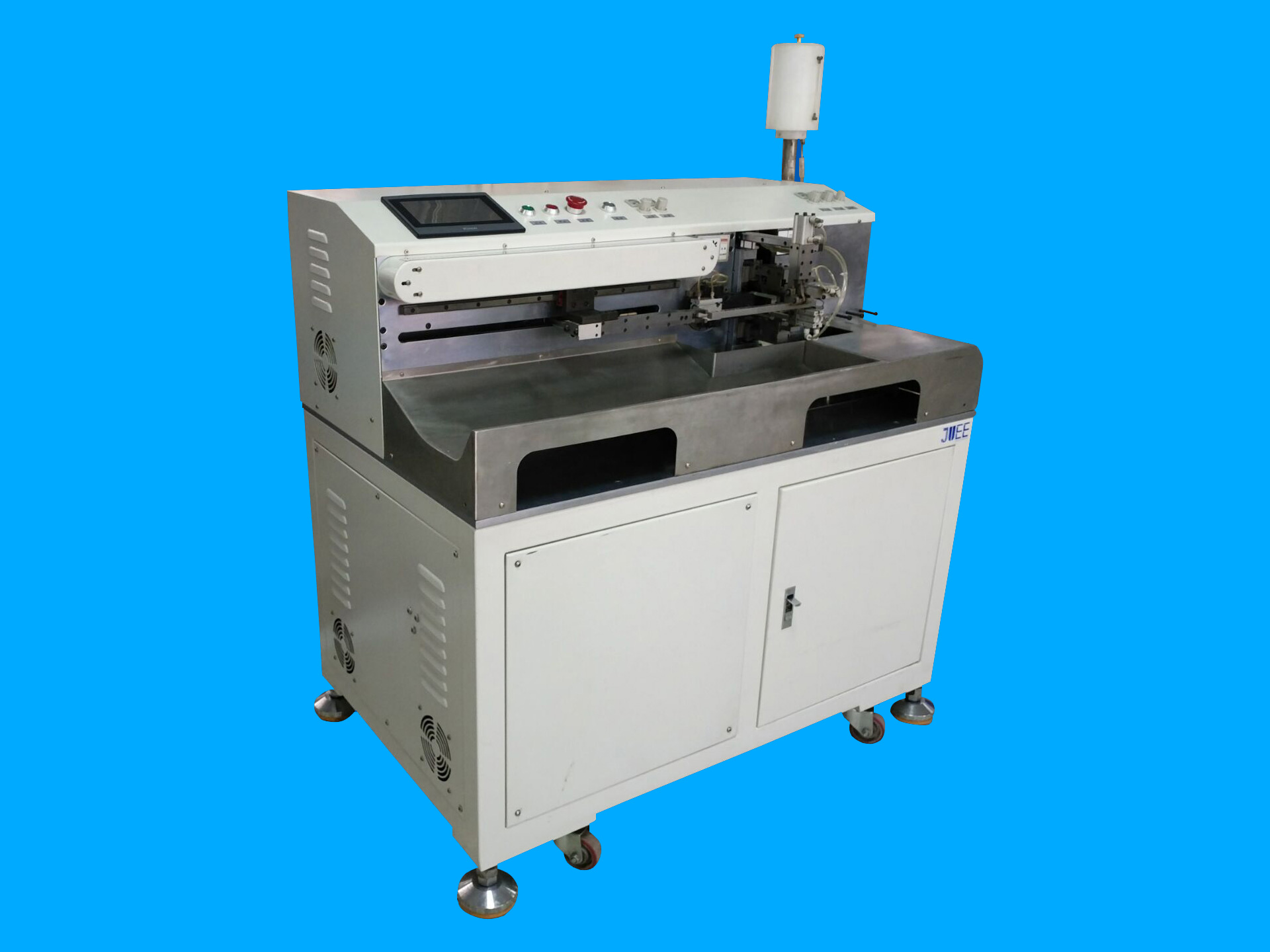

Full automatic double twisting wire tinning machineAppearance size
1200*1200*720weight
500kgDisplay mode
Chinese touch screen LCD displayPower Supply
AC220/50Hzfunction
Wire cut, single end peeling, double end peeling, single end twist, double end twist, single end tin, double end tinWire processing range
AWG32#-AWG16# can do 4.5mm wire (line of sight)capacity
/9000-16000 per hour (wire length is different), AWG32#-16# cut line 4 to ten, the line of sight changes.Length of cut
The longest is 450mm, the shortest, the remaining glue 8mm (long line can be customized)Stripping length
0.1mm-10mmTin length
1mm-10mm (transformable)Twist length
2mm-10mm (transformable)Wire Range
Electronic wire, high temperature wire, etc.Twisting mode
Digital operation (motor drive mode)Stripping Length
1-10mm, intermediate glue 10mm (if shorter, need to be customized)Detection function
Missing line inspection, wire knotting and air pressure detection.air pressure
More than 6 kilogramsDrive structure
Precision screw rod, slide table, reducer
