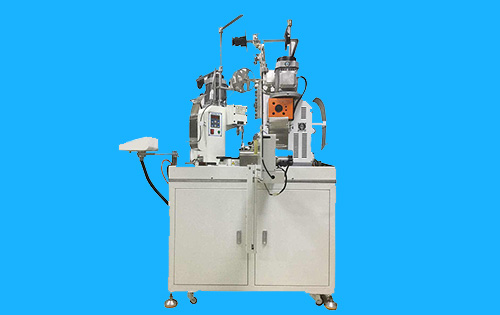

The machine features:
Sequence control interface, touch screen LCD display. Chinese operating system, easy to use. Fast wire laying, line peeling, beating end, high precision and fast speed. The feeding line, the cutter head and the swing arm adopt servo brake, lower noise and more stable. , the length of wire cut, the length of stripping, the length of wrapped glue, the delay of hitting end, etc., are digitally debugged. Quick change procedure. Excellent thinking, modular design, easy maintenance. The blade device adopts a bayonet positioning installation, easy to install. All the built-in circuits are equipped with abnormal signals, monitoring and indicating lights, and the problems are clear and easy to troubleshoot.ModelFull automatic terminal machine (pressed at both ends)Appearance sizeLength 1060MM * * 816mm * 1380mmweight410kgDisplay modeChinese touch screen LCD displayPower SupplyAC220/50Hzpower1500WSpeed / hour100mm/4200 stripCutting length0.1mm - 999999.9mmCutting toleranceModifiableSwing arm modeServo brakeTake-up modeSwing arm take-upApplicable line core area,32#-16#Wire RangeElectronic wire, high temperature wire, etc.Tool materialTungsten steel / alloyWire diameter adjustmentAdjustableThe stripping qualityexcellentHigh precision decimal pointYesDrive structurePrecision screw rod, slide table, reducerTerminal machineMinow electronic clutchDetection deviceEnd check, wire rod, knot test and paper check.Auxiliary deviceTerminal waste paper coiling device and terminal waste cutting devicePressing ability1.5T/2T/3TUser evaluationGood
